DJI T50 agricultural unmanned aircraft is an agricultural operation equipment released by DJI on November 23, 2022, which integrates the functions of flight measurement and flight defense. This model adopts a coaxial double-rotor power system, equipped with a dual atomization spraying system, supports 40 kg of spraying and 50 kg of spreading load, and the maximum operating efficiency is 16 liters of spraying or 108 kg of spraying per minute. It is equipped with a binocular vision system and a 360-degree omni-way obstacle avoidance function, which can adapt to complex terrain and realize fully automatic ground-like operation.
2.Product Key Technical Specifications
1,Dimensions (Unfolded): 2115 × 2115 × 810 mm (L × W × H)
2,Dimensions (Folded): 1225 × 780 × 810 mm (L × W × H)
3,Unloaded Weight: Approx. 23.5 kg (without battery)
4,Max Takeoff Weight: 101.5 kg (with spreading system)
5,Spraying System: 50 L tank
6,Spreading System: 50 L hopper / 50 kg
7,Spraying: ≤ 40 L (to prevent sloshing)
8,Spreading: ≤ 50 kg (or full hopper)/
9,Propulsion System:Axial folding dual-rotor system
10,Generator model:D12000iEP All-Round Frequency Conversion Charging Station
11,Maximum power:12kW
12,Fuel Type:Unleaded Gasoline
13,Fuel tank volume: 30L
14,Charging time: 9-12 minutes
15,Charger model: C10000 smart charger
16,Recommended Battery: DJI DB1560 Intelligent Flight Battery (30000 mAh)
17,Nozzles: New dual centrifugal nozzles
3.Product Specifications
|
nozzles
|
New dual centrifugal nozzles
|
Battery Capacity
|
52.2V
30000 mAh
|
|
Spraying System
|
50 L Tank
|
Spreading System
|
50 L Hopper / 50Kg
|
|
Max Spraying Flow Rate
|
16 L/min
|
Max Spreading Flow Rate
|
60 Kg/min
|
|
Remote Controller
|
DJI RC Plus, 7-inch high-brightness display
|
Operating Temperature
|
-20°C to 50°C
|
4.Product Advantages
1. Battery Capacity
The T50's 30000mAh high-capacity battery supports long-endurance operations, enabling fewer battery swaps and greater coverage per sortie for large-scale farms.
2. Generator Charging Time
With a compatible DJI generator, the battery can be rapidly charged in the field, achieving a full charge in approximately 9-10 minutes for minimal operational downtime.
3. Charger Charging Time
The high-power charging station can fully charge a T50 battery in about 9-10minutes, allowing for quick turnaround and continuous, high-intensity flight operations.
4. Spreading/Spraying Speed
It achieves a max spraying flow rate of 40L/min and a spreading rate of 60kg/min, enabling exceptionally fast and efficient coverage of large field areas.
5. Remote Control Intelligence
The DJI RC Plus features a bright, intuitive interface for automated planning and AI assistance, making complex operations simple and accessible for all skill levels.

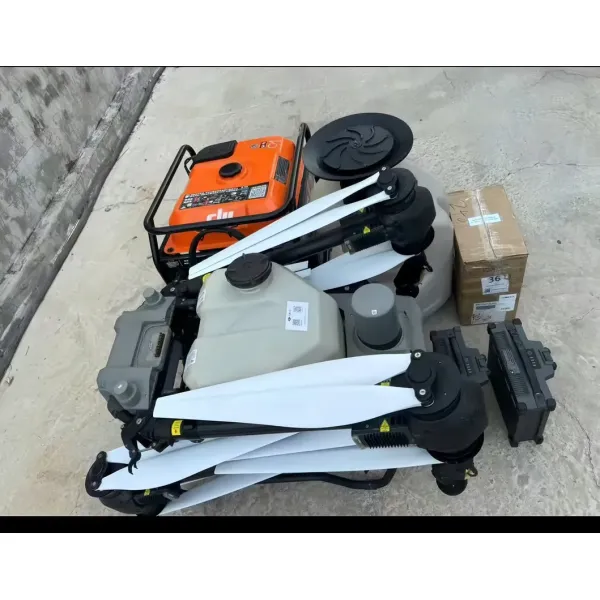

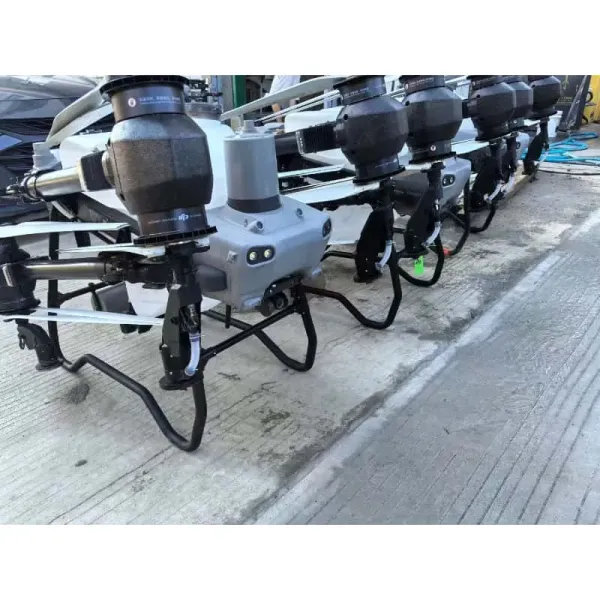

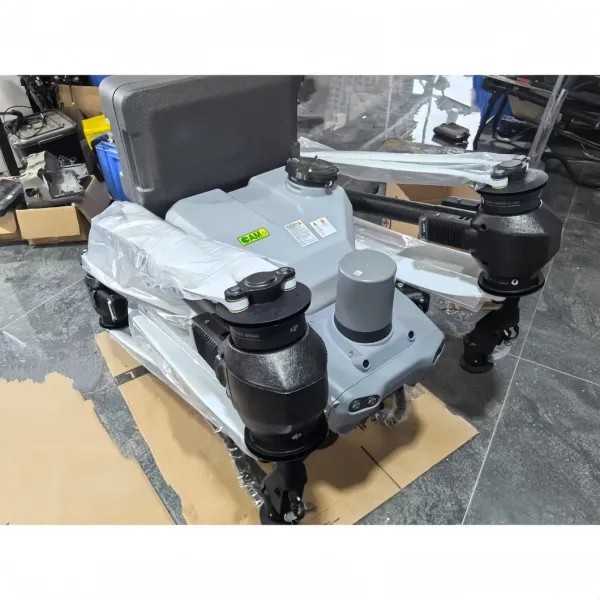

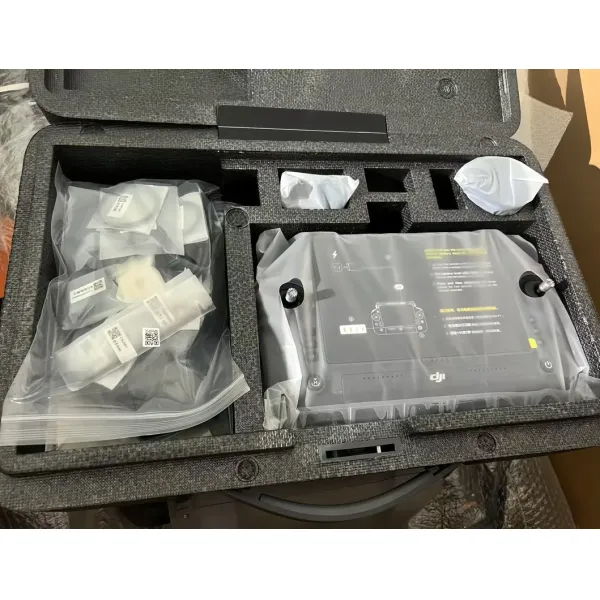

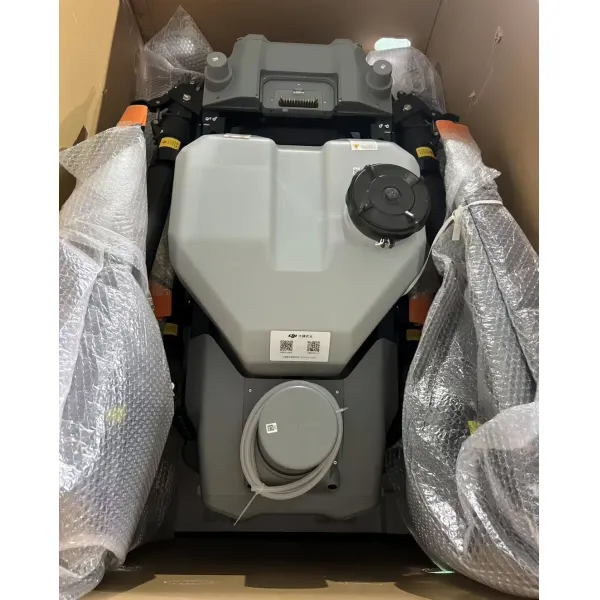

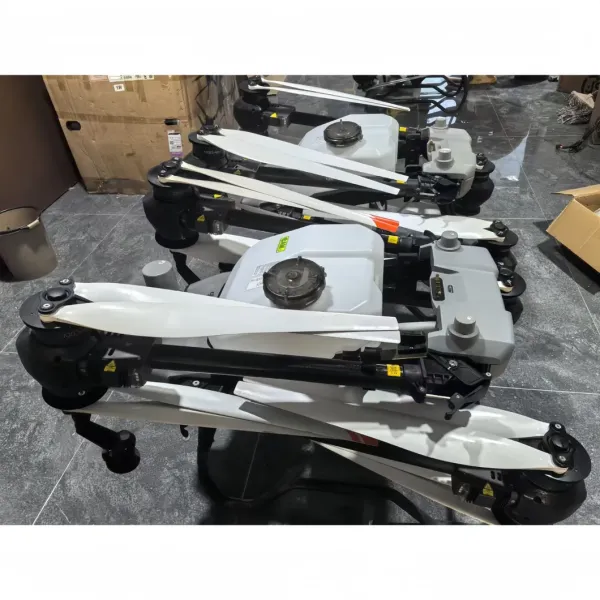

5.Product Detail Display
